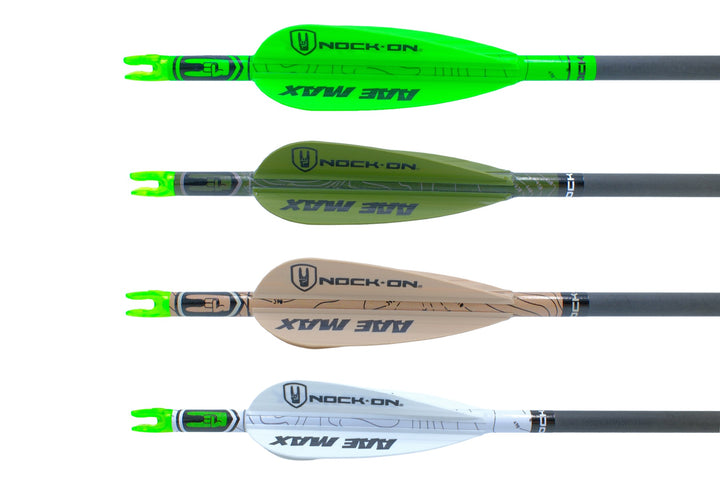

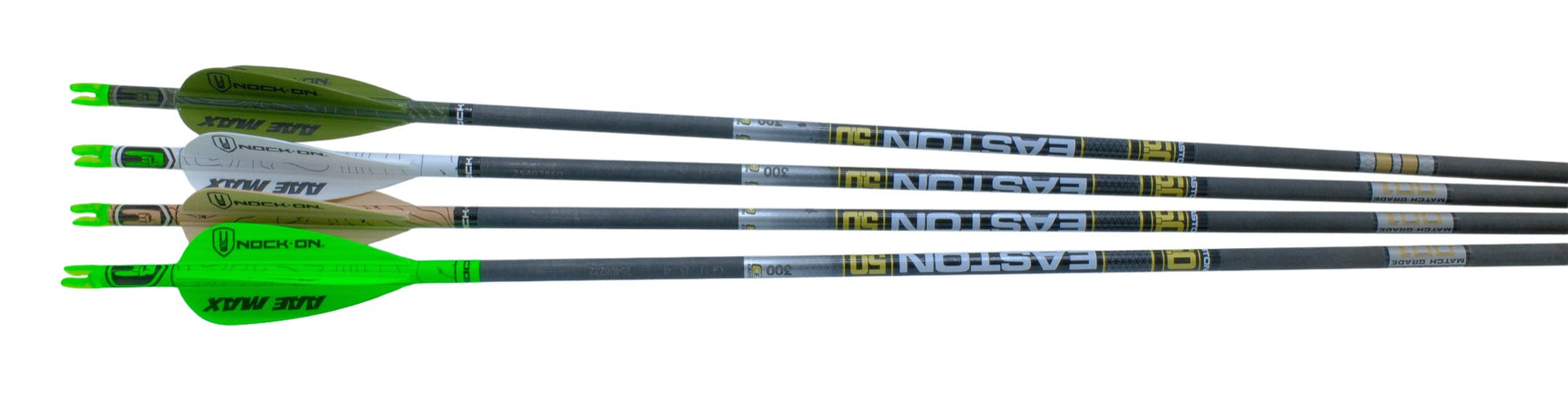

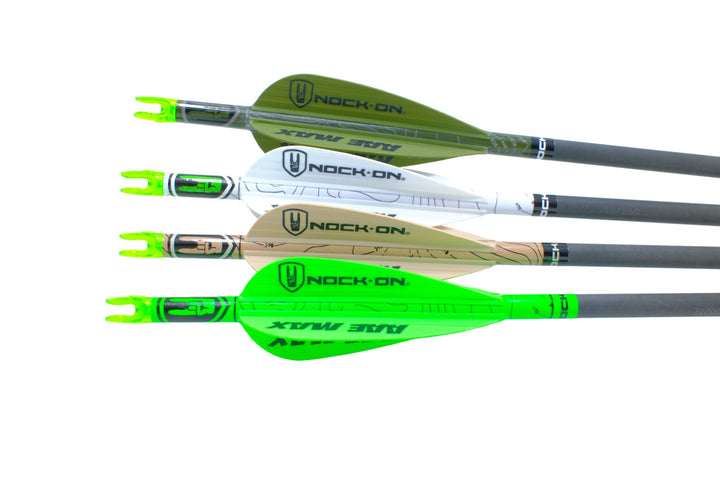

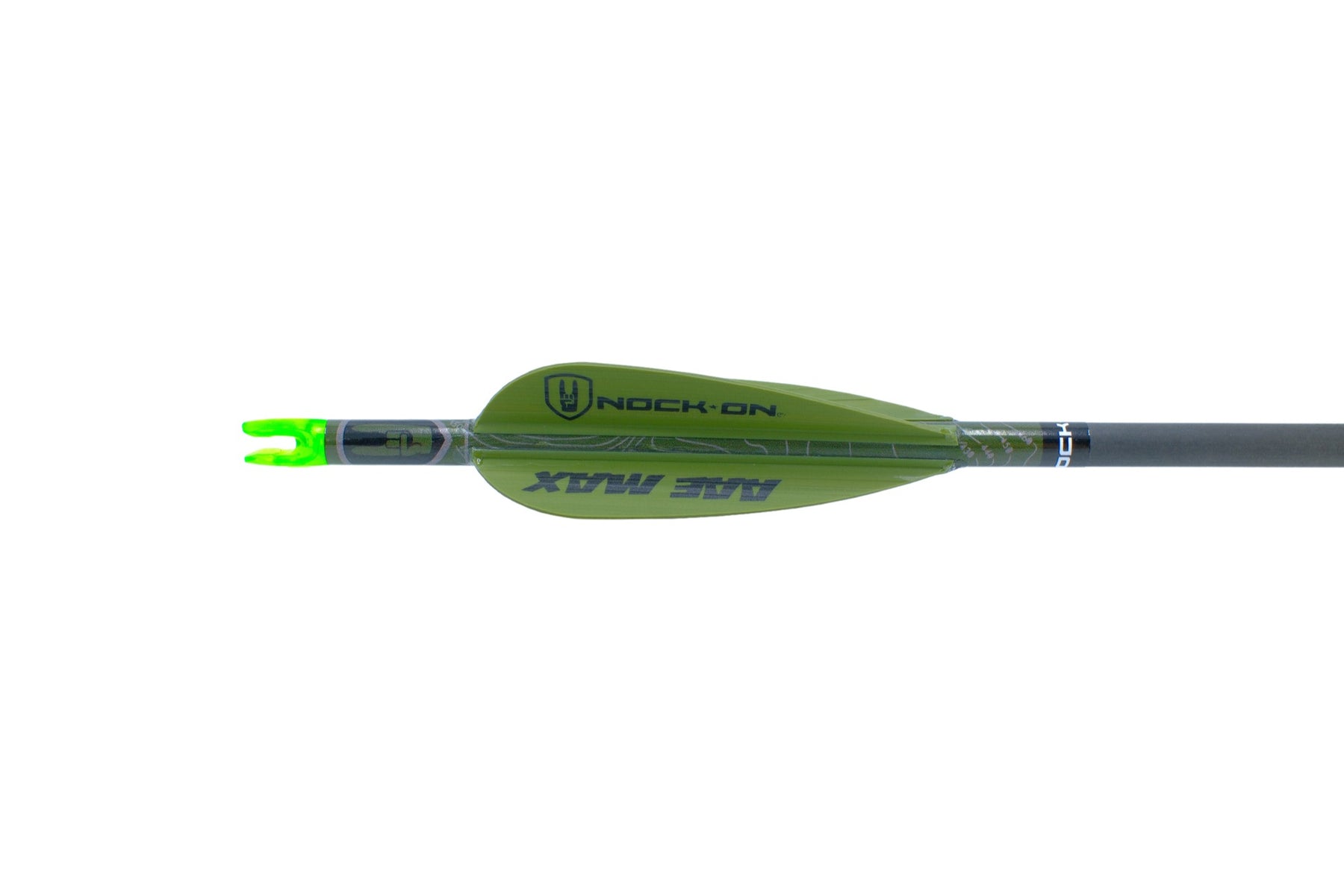

Hand Fletched Easton 5.0 Topo Edition (12ct)

PRECISION 5.0 SHAFTS meets PRECISION HAND FLETCHING!

The hottest arrow on the market right now is the Easton 5.0 match grade giving you a lighter, faster high modulus acu-carbon arrow that opens more doors of options. When you combine those specs with the proven track record of the best hand built arrows you can get to your door, "Nothing is Built Better & Nothing Groups Better!"

Built to John Dudley’s exact personal specifications, these arrows are custom cut and hand-fletched with unwavering attention to detail, delivering the tightest groups you’ve ever shot. Arrow builds from Nock On give you added value coming standard with brass inserts for enhanced FOC and a 4-fletch configuration with 2.5° right helical & assembled with upgraded glues, epoxies and each vane individually tipped and tailed for impeccable durability. These arrows are ready to deliver lethal accuracy whether you’re in the backcountry or on the tournament line with a whisper-quiet flight.

Why the New 5.0 VS Axis?

The Short answer is Speed & More component Options! The benefits to the new 5.0 Carbon is that this new higher modulus carbon is lighter weight and allows an archer to add in extra front insert, point weight or lighted nocks to the arrow while keeping the overall weight of the arrow similar to the original axis that wouldn’t have those.

I have personally loved the Original AXIS match grade shafts using the brass inserts for 20 years now. They are dependable and deadly accurate. BUT.... Here's where the 5.0 weighs in, in addition to what I mentioned above-

For the archer who is lower in pulling weight or shorter in draw length and is looking to save any weight possible to boost speed then this NEW 5.0 is a great arrow for that. The 5.0 is about 2 grains lighter per inch of arrow and saving that weight lets you choose whether to get the speed or add weight to the right places to boost your FOC numbers. These options and higher modulus carbon do come at a cost though with the price tag being higher for the 5.0 than with an Axis.

If you are not chasing speed numbers or on a different budget the Match Grade Axis are still and always will be an awesome choice. I have used both the Axis & 5.0 throughout the past several seasons and will continue to depending on the application. The 5.0 is lighters, higher modulus carbon with a boost in speed and in price over the AXIS - Dudley

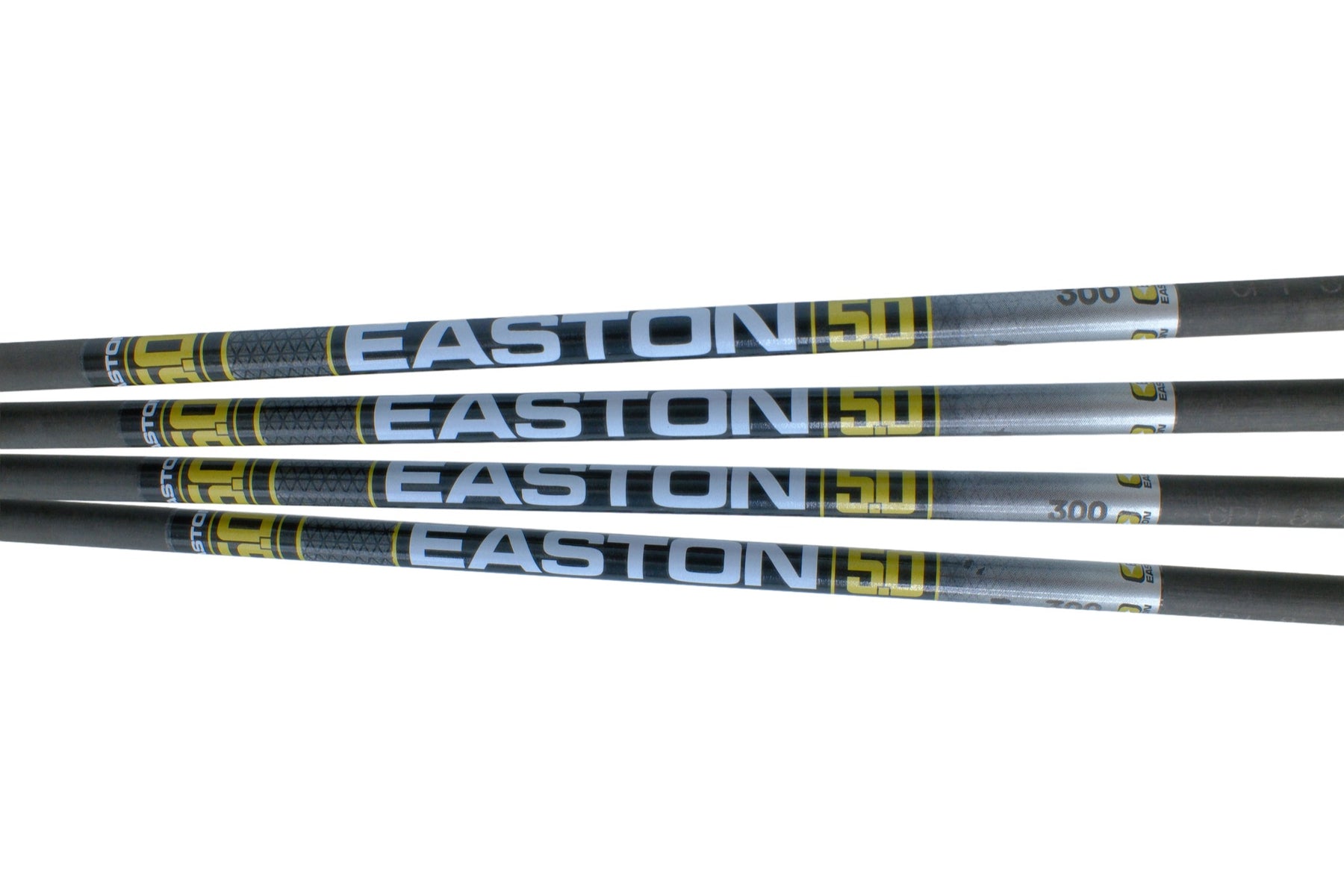

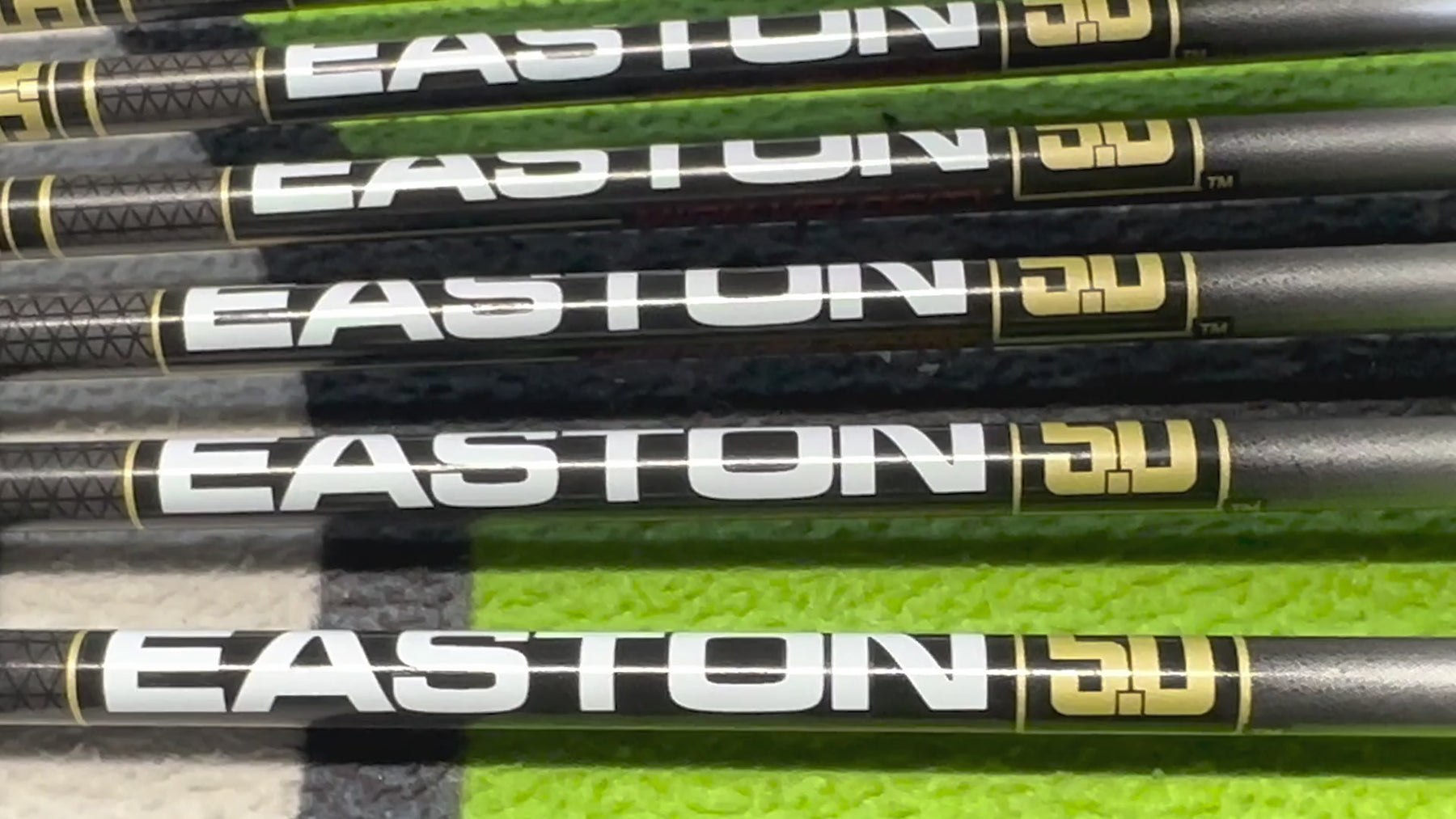

The New Easton 5.0 Match is the all-new lightweight, small diameter arrow, designed to be a versatile shaft that offers multiple setup options due to the new High Modulus Accu-carbon.
The lighter overall mass weight of the Easton 5.0 allows for a versatile range of arrow setup options that give you the ability to boost higher-FOC configurations without boosting overall weight.

The Nock On Easton 5.0 comes standard with :

• Stainless Steel  50/75 gr HIT insert
• New Match Grade Stainless Steel collars giving you more durability and F.O.C options than standard 5.0 that are available.

Built on a micro-diameter 5mmAcu-Carbon platform, the Easton 5.0 reduces friction for enhanced penetration and decreases wind resistance for greater accuracy and higher velocity downrange.
Crafted in the USA using Easton’s seamless Acu-Carbon processand high-modulus carbon fiber, the 5.0 ensures consistent weight and spine in every shaft and across every dozen
The 5.0 features Easton’s new 5MM Microlite™ Nock System, which is a more compact nock body and a redesigned throat for a perfect string fit.

Available in spine sizes (250, 300, 340, 400).
The Easton 5.0 accommodates virtually all bowhunting setups.

Technical Specifications

• Construction: 5MM high-modulus lightweight carbon fiber with Acu-Carbon construction
• Match Grade Straightness: +/-.001″
• Available Spine Sizes: 400, 340, 300, 250
• Insert System: 50/75 Grain Break-off Stainless Steel HIT (8 to 32 thread)
• Match Grade HIT Collar uses 8-32 thread 5/16" field point (8-21 grains)
• Nocks: Pre-installed 5mm Microlite™ (8 grains)
• Made in USA

Feature Breakdown

Premium Match-Grade Construction

Each shaft comes from a brand-new carbon spool that produces over three miles of continuous material, cut in sequence to ensure perfect shaft consistency. This proprietary process delivers unmatched accuracy through identical spine and weight characteristics across every arrow in your set.

Professional Hand-Fletching Process

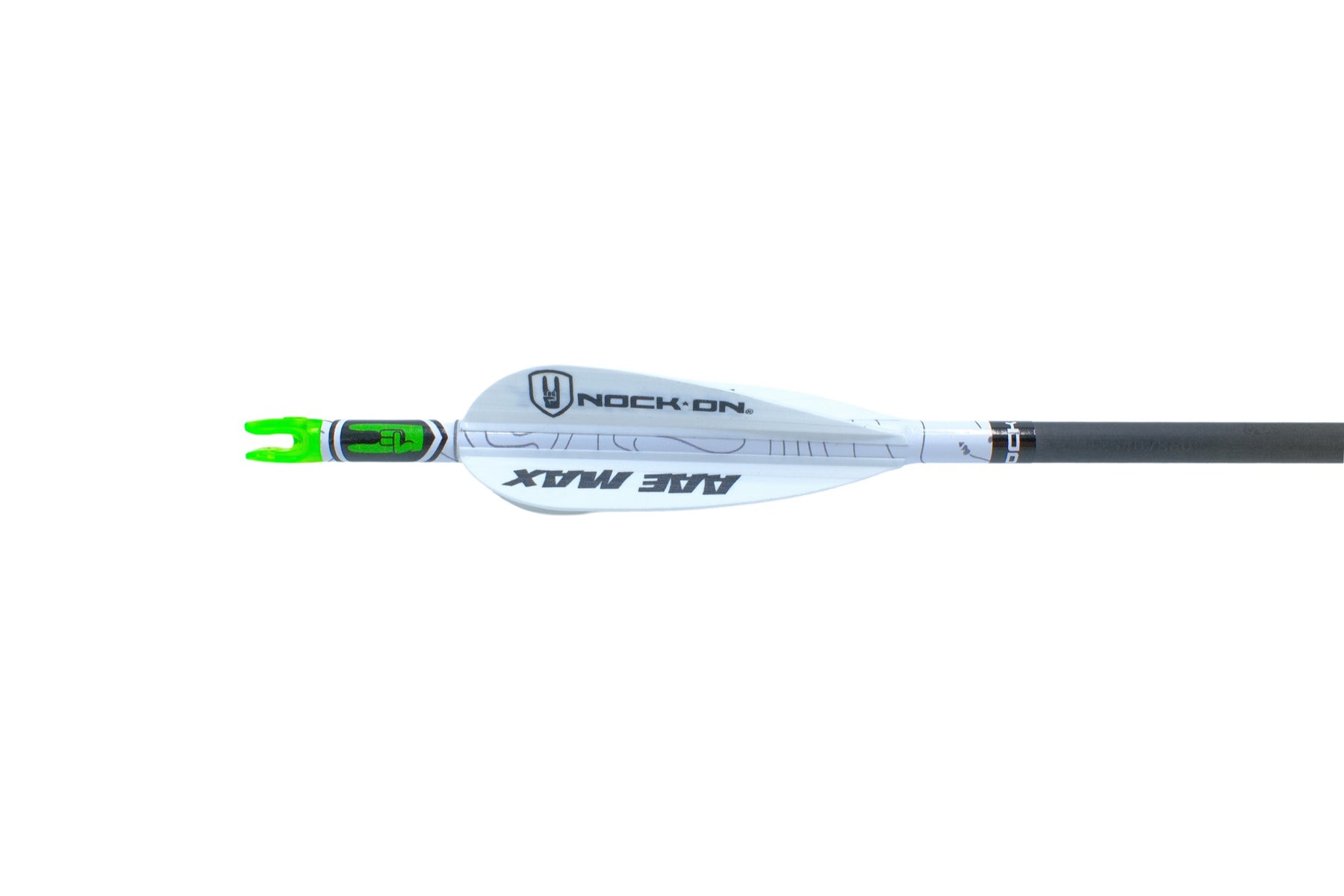

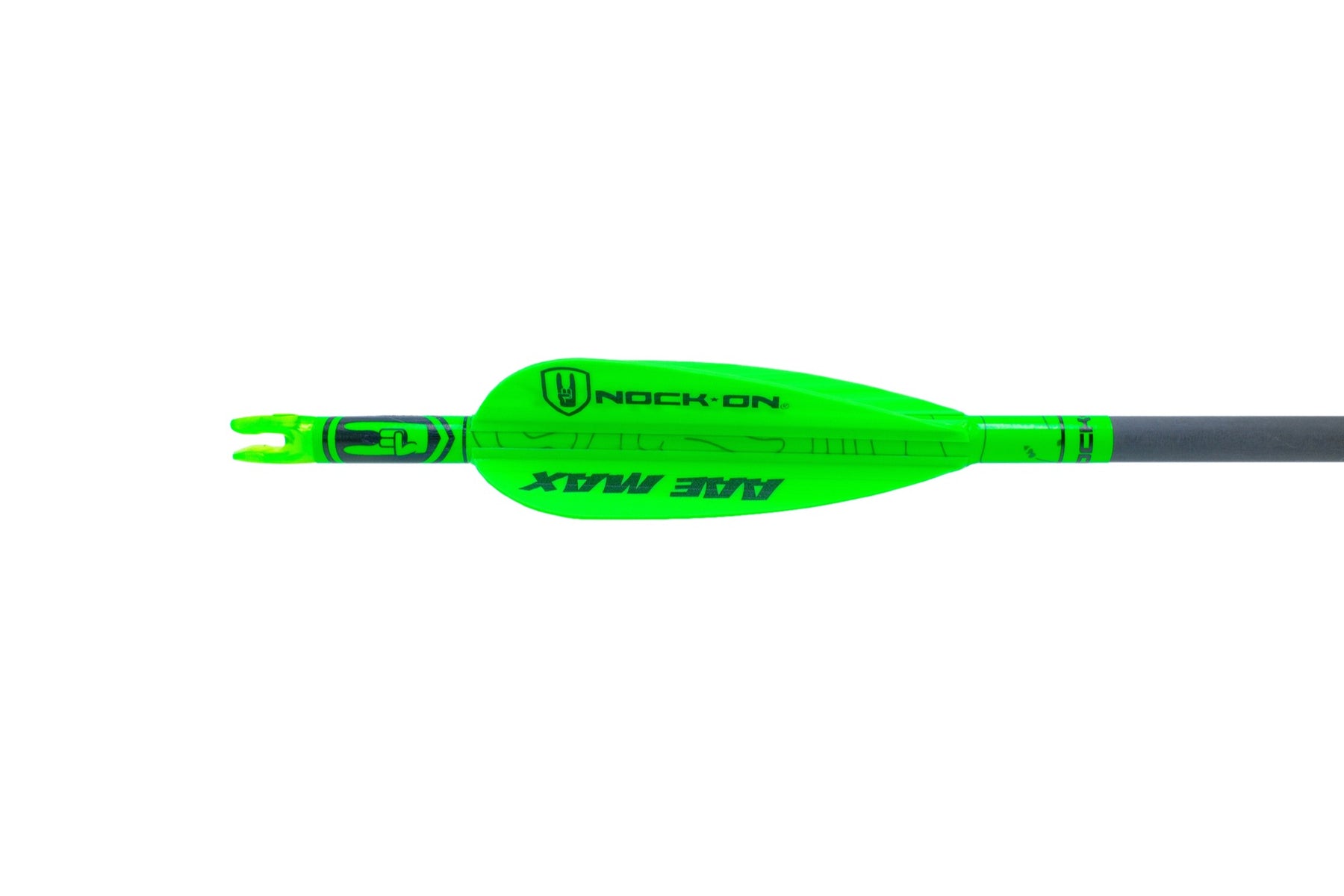

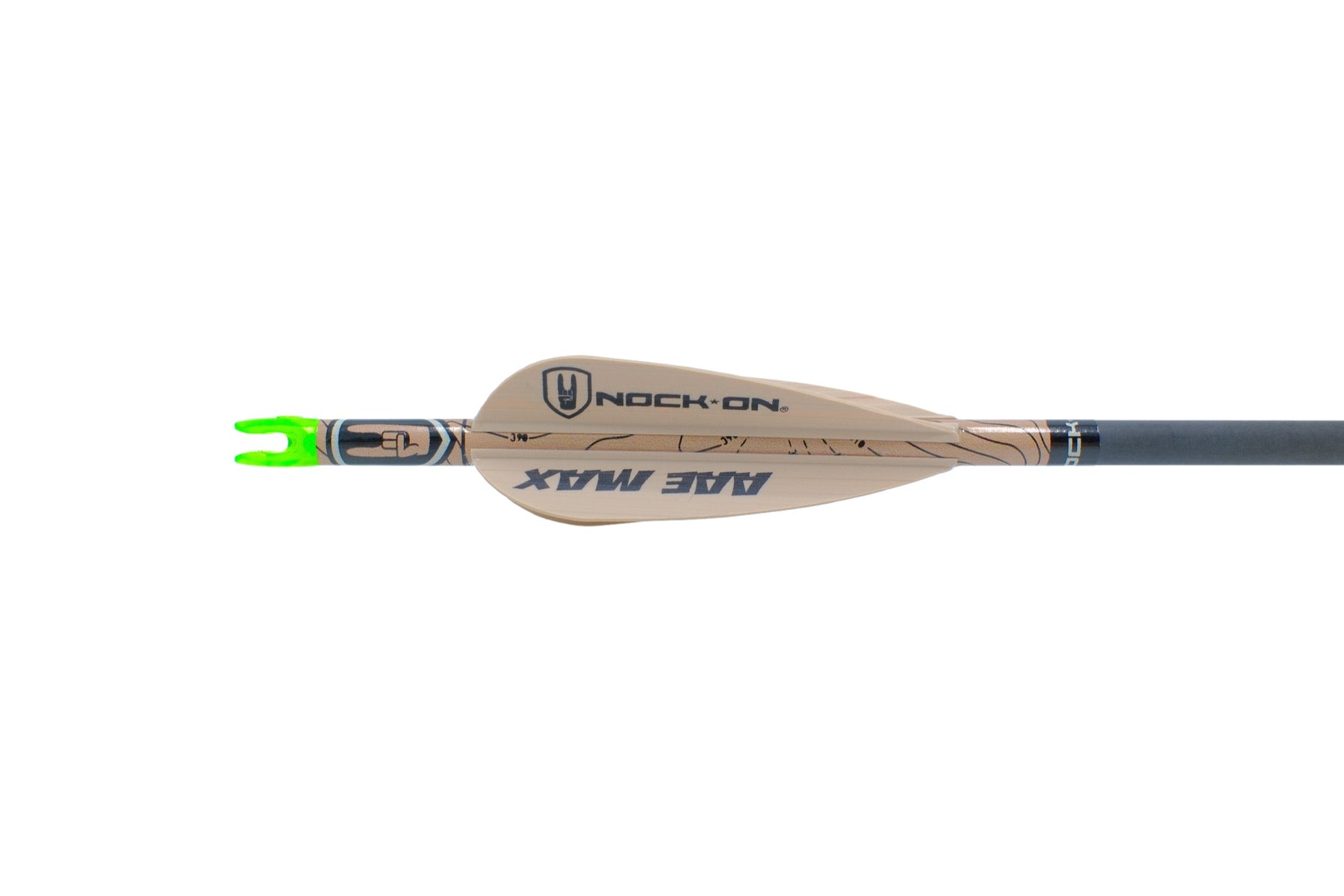

Built using Nock On Certified wraps and Max Stealth Vanes in a 4-fletch configuration with 2.5° right helical. This proven fletching setup provides superior stability and broadhead accuracy.

Each arrow is hand-fletched to match John Dudley’s competition and hunting specifications. This outperforms competitors’ pre-fletch alternatives, which must sacrifice types of vanes, glues, and vane offsets due to what a machine will allow.

Advanced Component Integration

Every arrow includes pre-installed Stainless Steel HIT inserts with break-off weight adjustment options and pre-installed 5mm IP Nocks

NEW MATCH GRADE STEEL HIT COLLARS (Standard with Nock On 5MM Arrows)

Brace for Impact- The NEW Easton Match Grade HIT Collars. Easton’s new Match Grade HIT Collar are designed to increase the impact strength of an arrow using the HIT system. Built out of hardened stainless steel. Come in 6 sizes to accommodate all 5mm Easton Arrows. Included with Easton Match Grade 5mm Arrows. Fits 17/64 & 5/16 Field Points. All Nock On 5MM arrows come standard with the new Match Grade Steel Collars.

Technical Specifications

Arrow Specifications

• Straightness: +/-.001″
• Construction: 5mm micro-diameter carbon-composite fibers
• Fletching: 4-fletch configuration, 2.5° right helical
• Components: Stainless Steel 50/75 Grain Break-off HIT 8*32 insert, Stainless Steel Match Collars, green 5mm (X) nocks

Important Notes

• Up to a 2-business day build time is required
• Contact phone number MUST be provided for order confirmation and specifications
• Hand-fletched arrows are non-returnable once specifications are confirmed
• All sales are final
